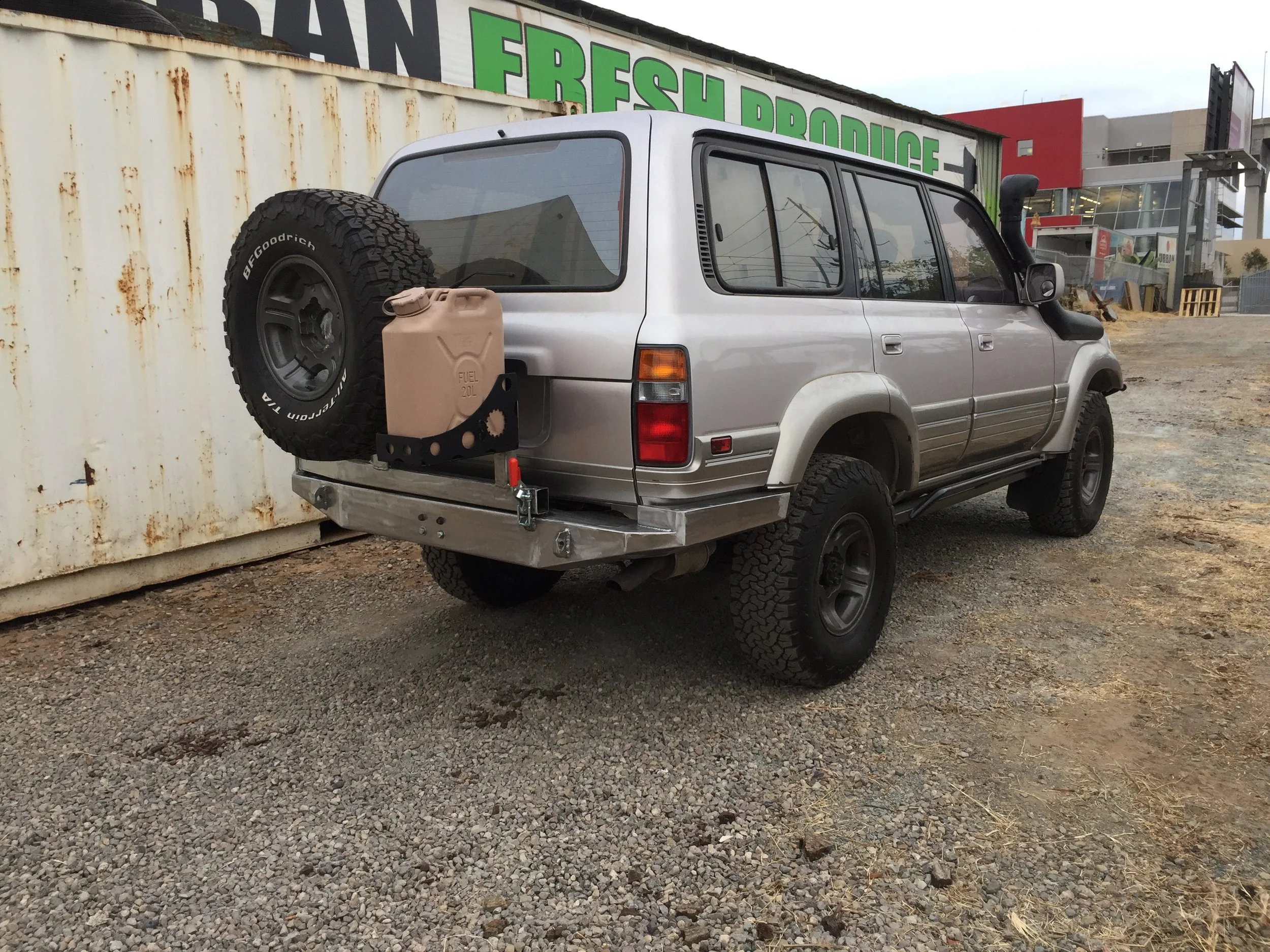

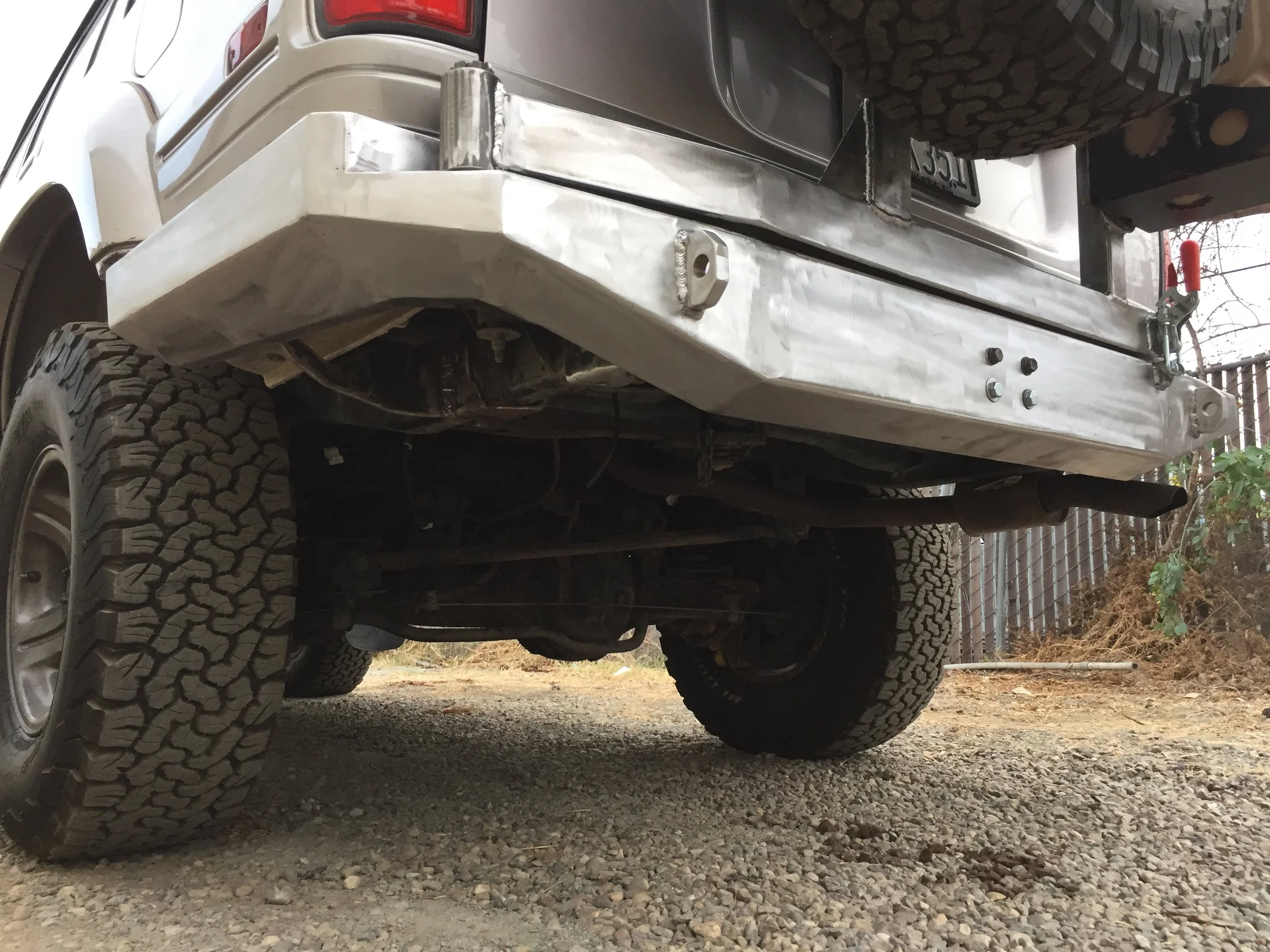

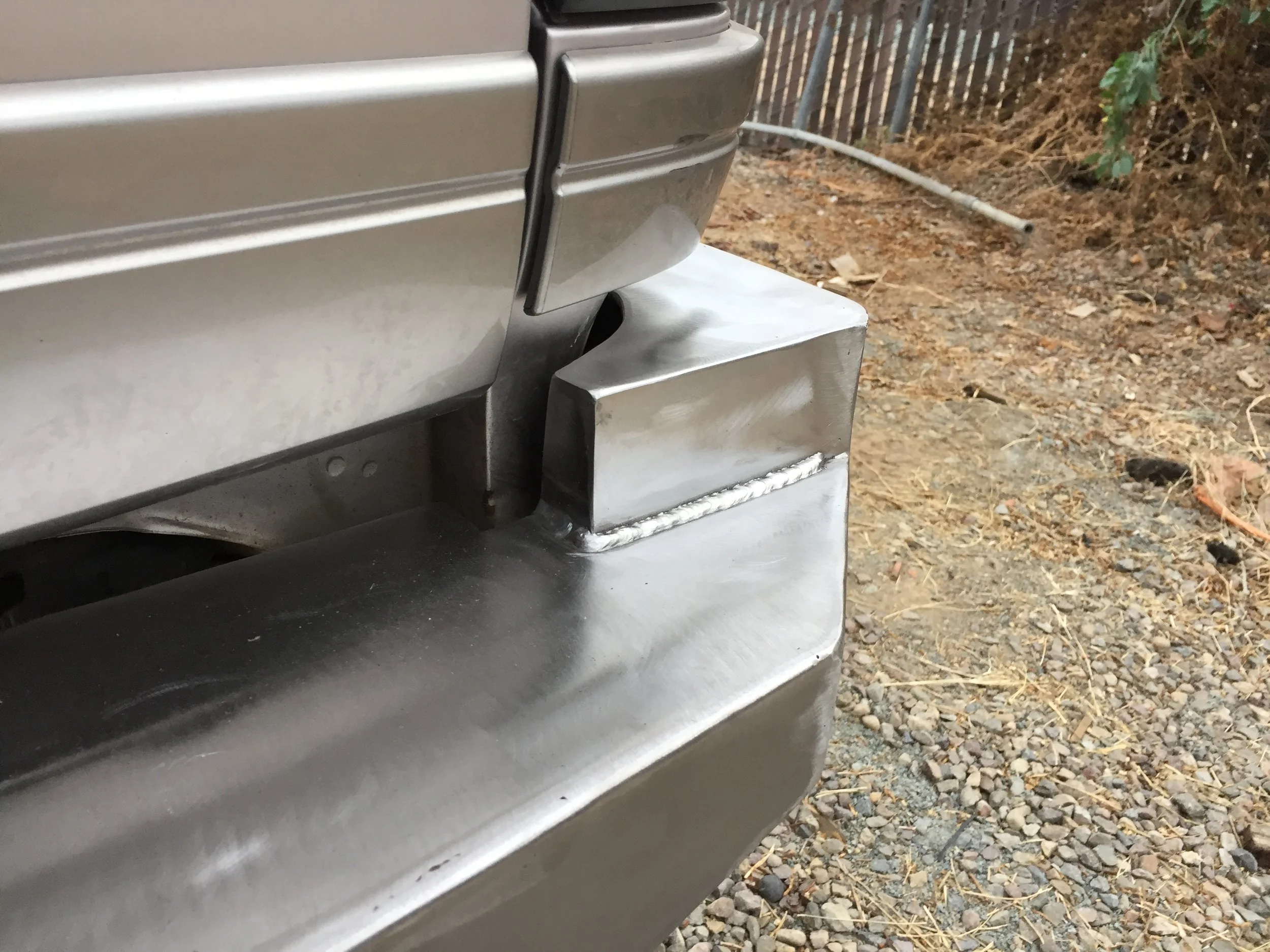

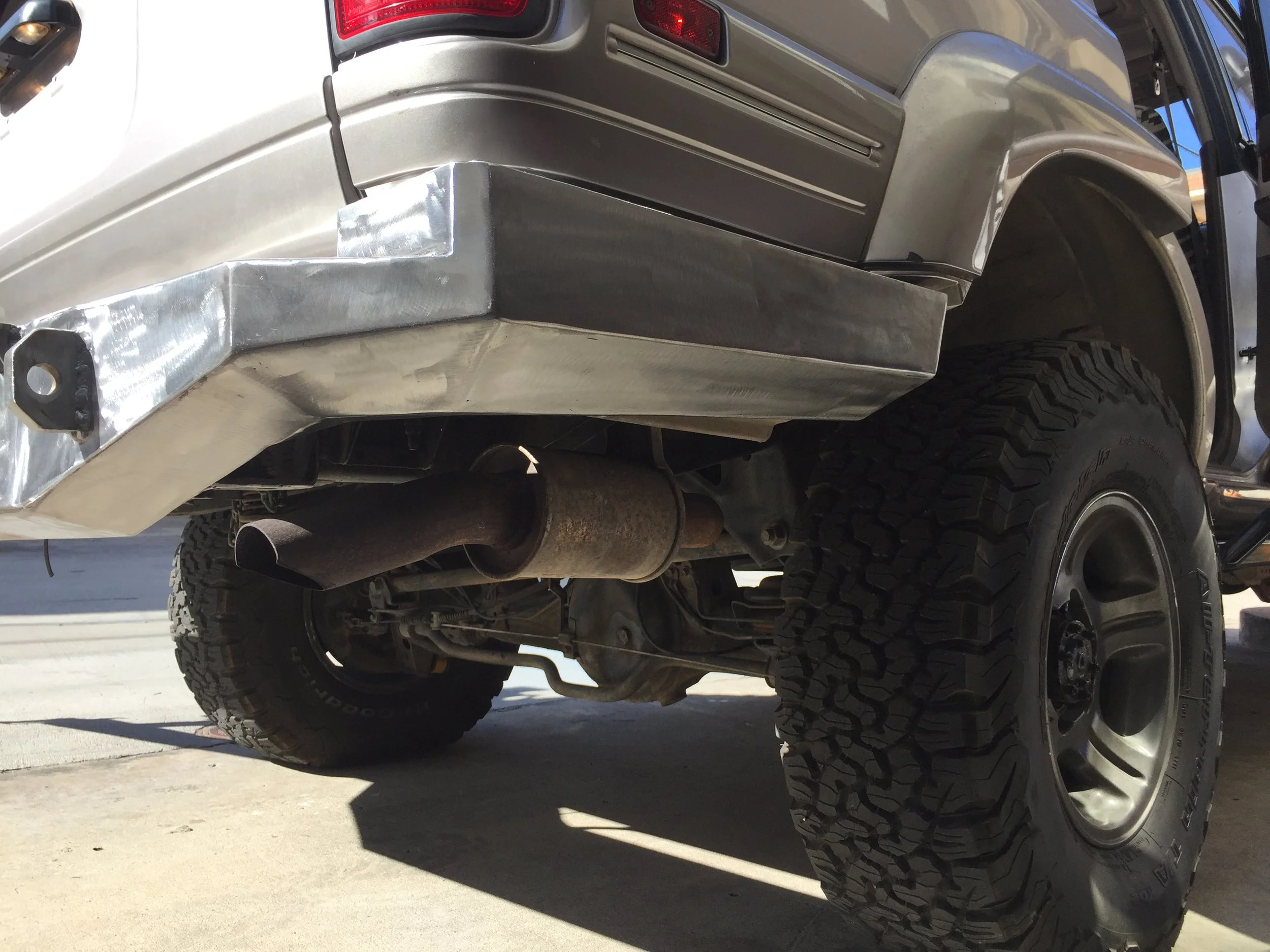

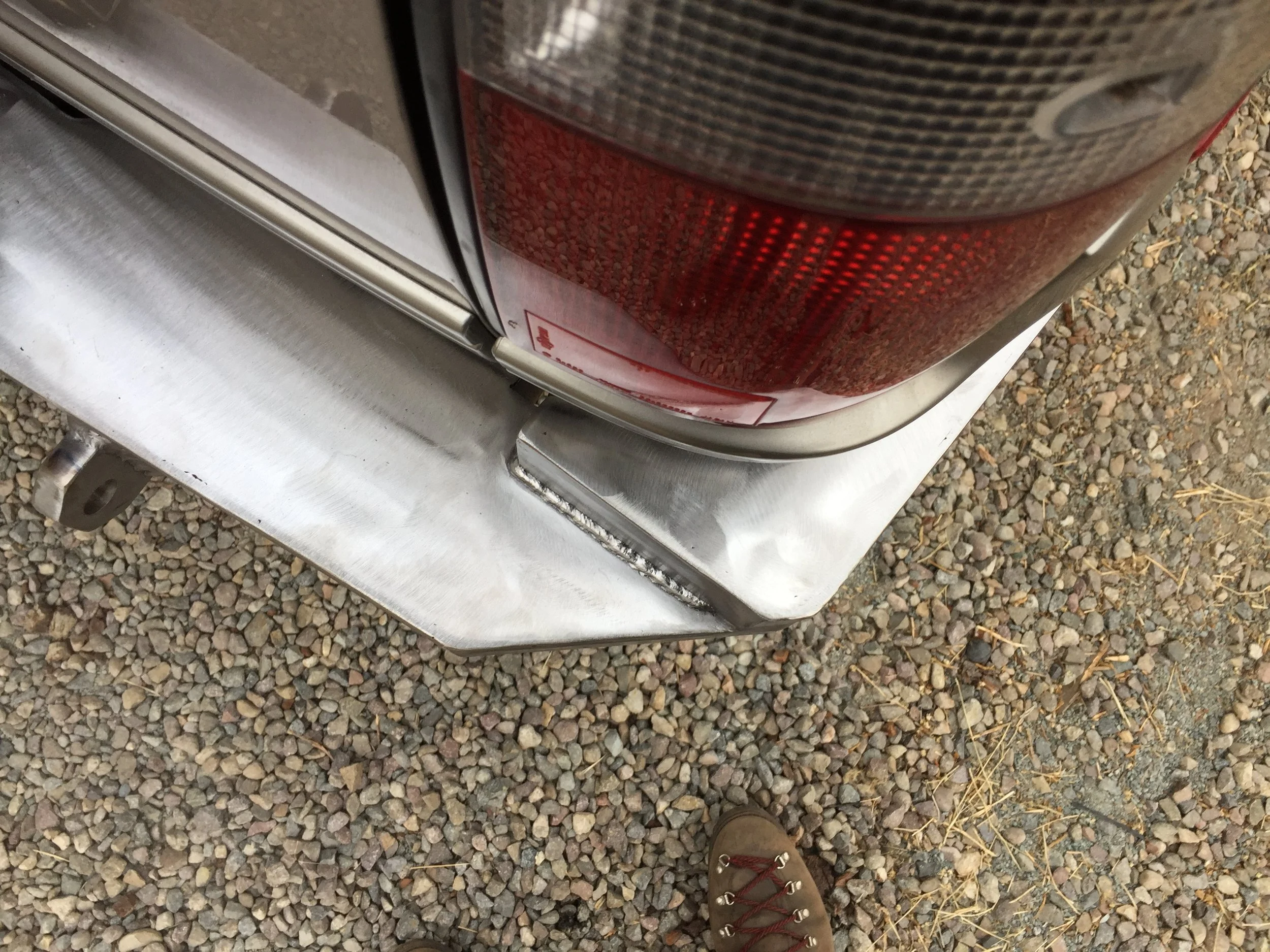

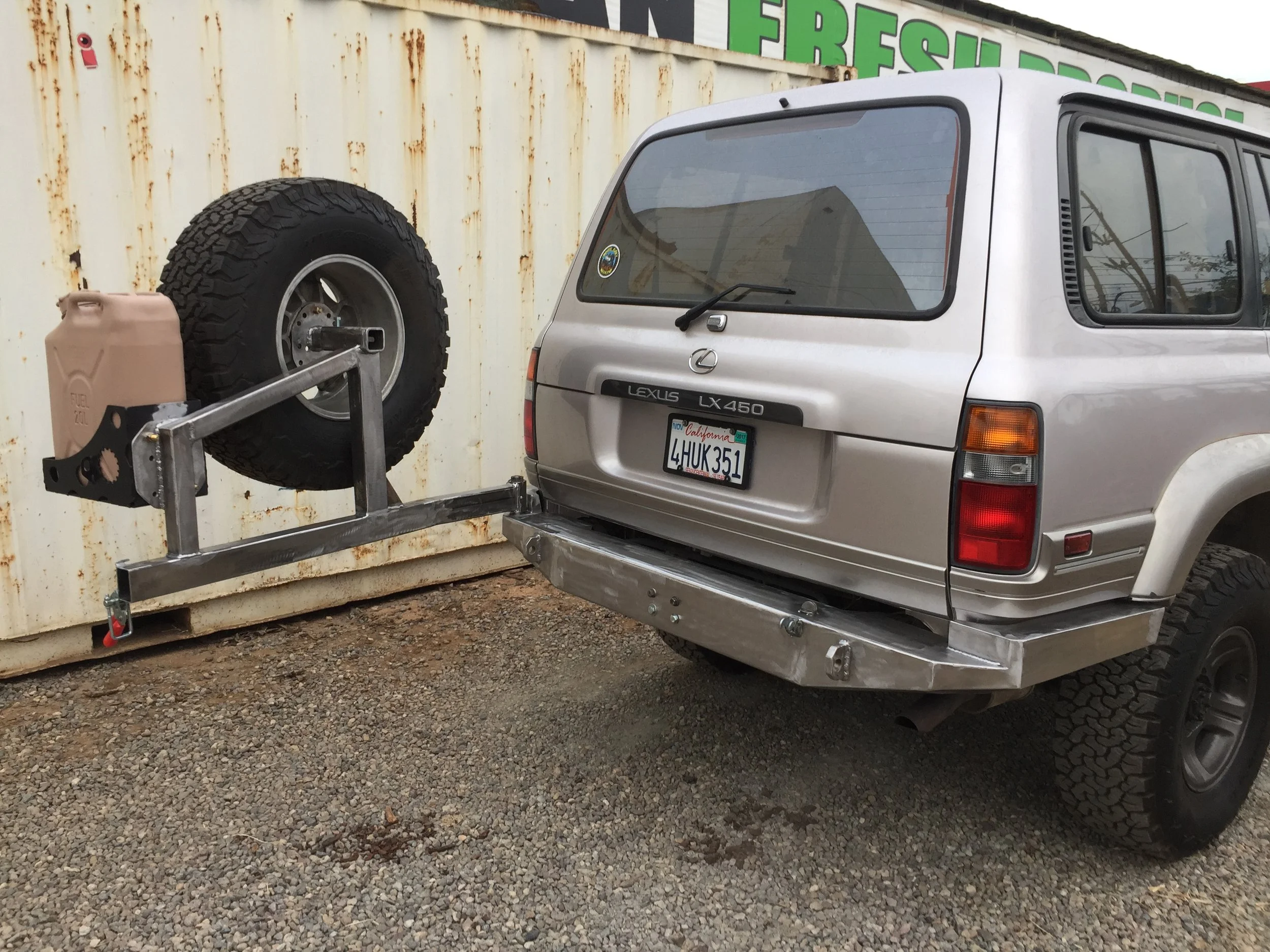

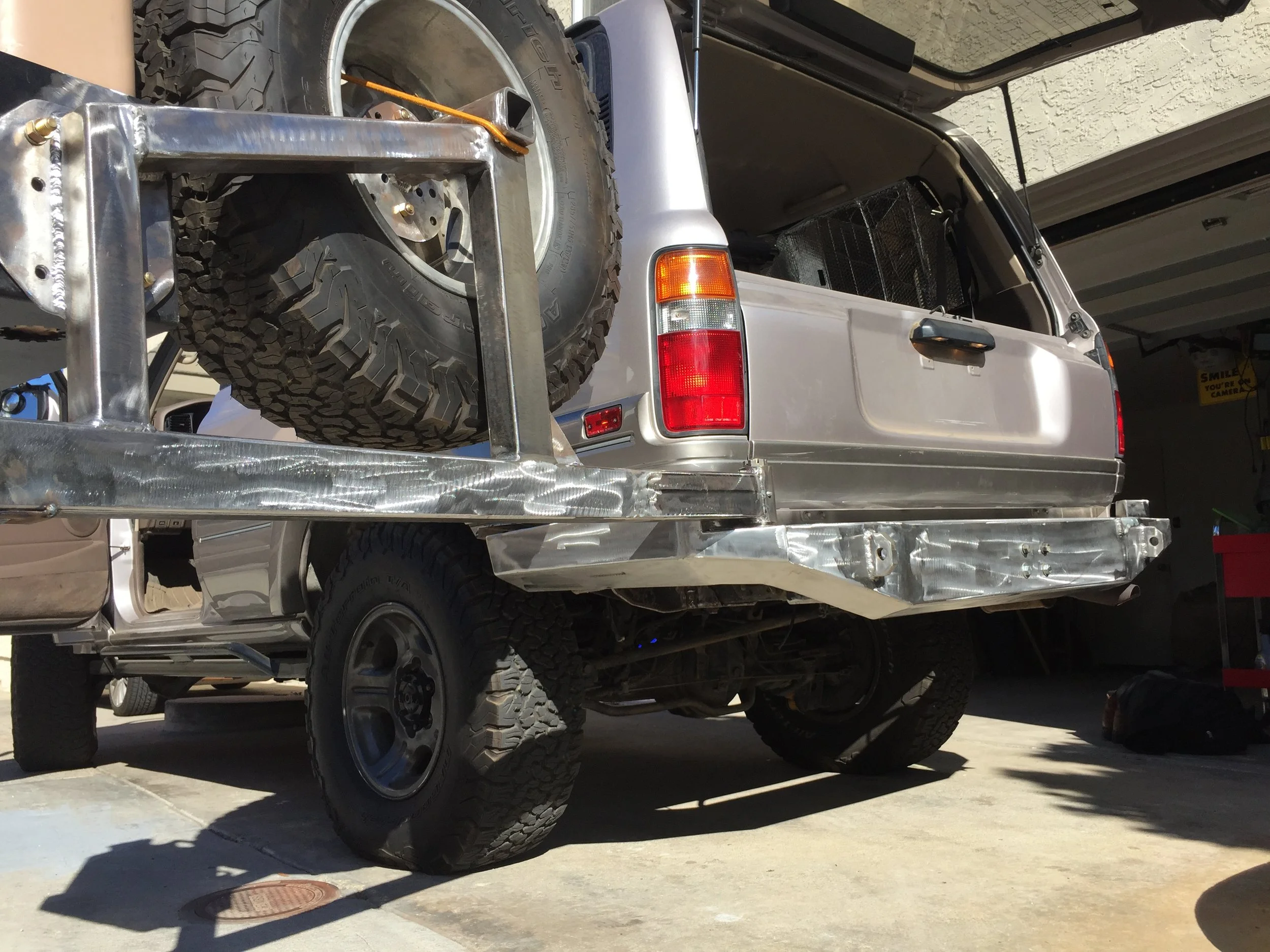

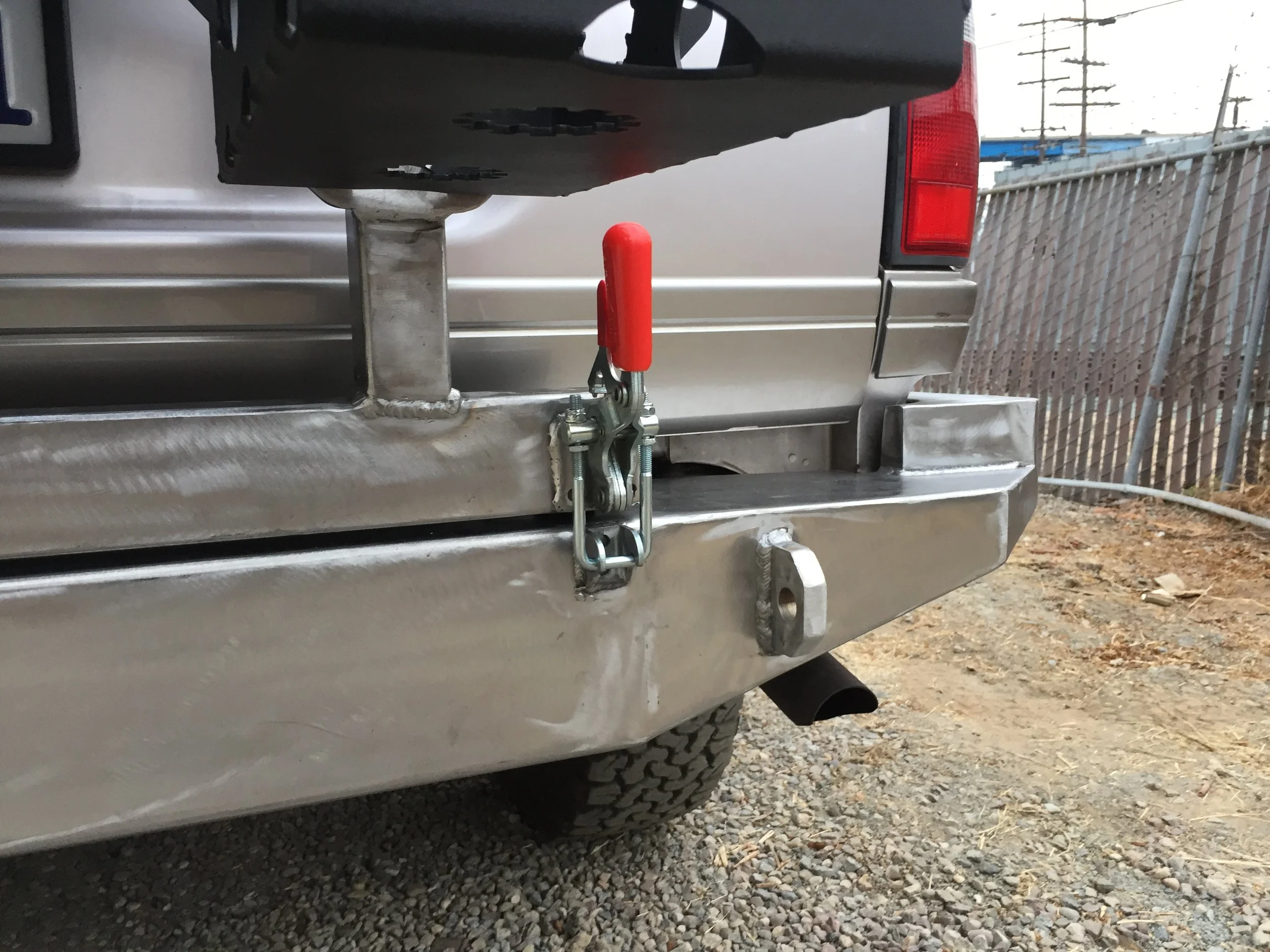

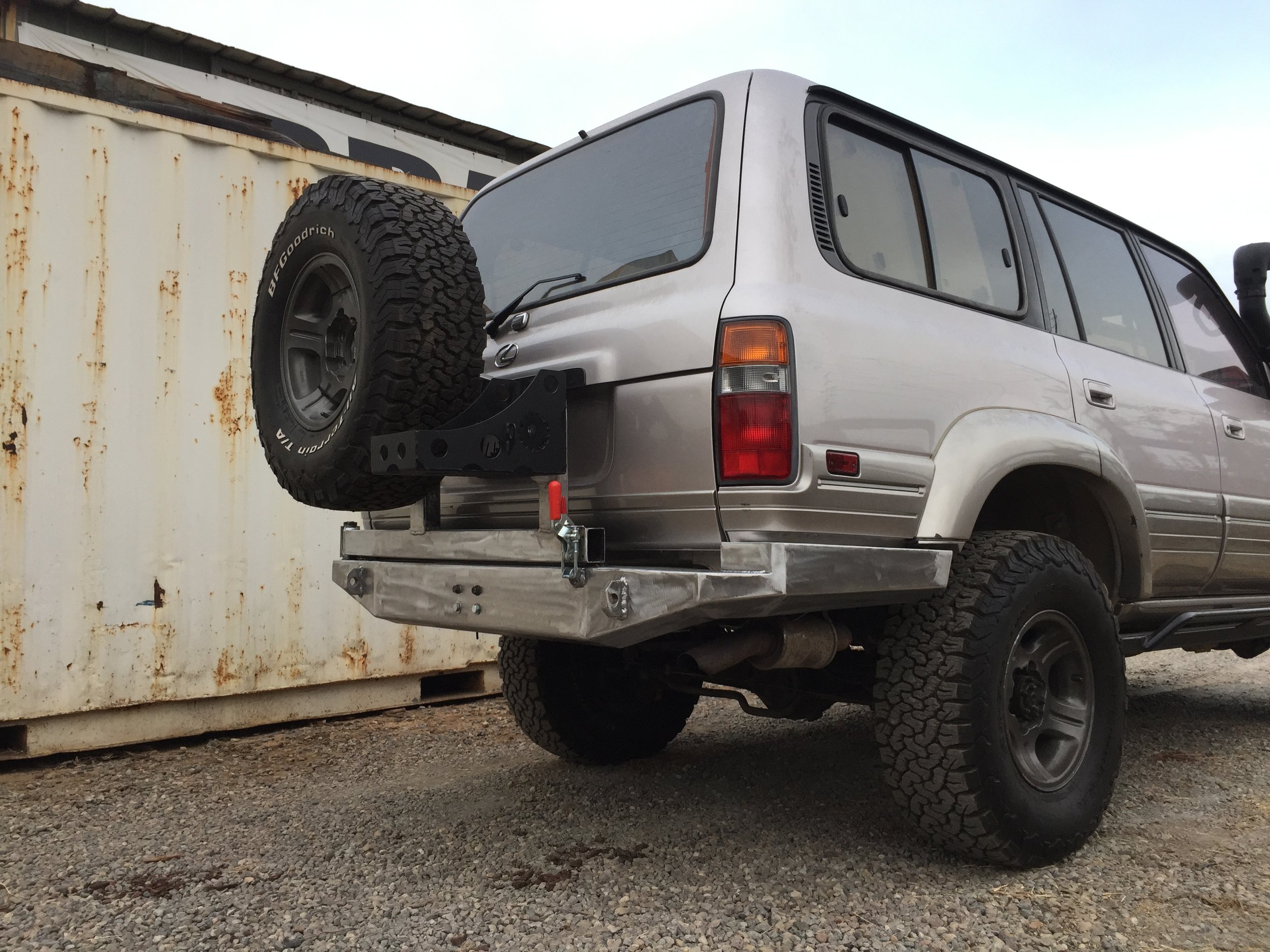

Single swing out made from rectangular/square steel tubing and a stainless steel, locking De-Sta-Co clamp for single action convenience and safety Swing out sits on a 1 1/4" spindle and holds an adjustable tire carrier (up to 35") and universal tire plate as well as a custom made accessory plate (pictured with a single jerry can holder)  Made from 3/16" Steel plate with some 1/4" brackets, sandblasted and powder coated semi-gloss black upon request.

I am the builder and this product is being offered directly to you, turnkey and bolt-on including all hardware at a much more inclusive and attainable price point than the existing bolt-on options. Exact costs will be determined as we gear up this first production run, but it will be in the ballpark of $2k.

NOTE: These first photos don't show the little odds and ends like light/antenna tabs, lic plate holder, catch pin/plate. Simply ran out of time to install those items before going to blueprint so they'll be added later. There will also be an optional combo pintle/ball hitch.
